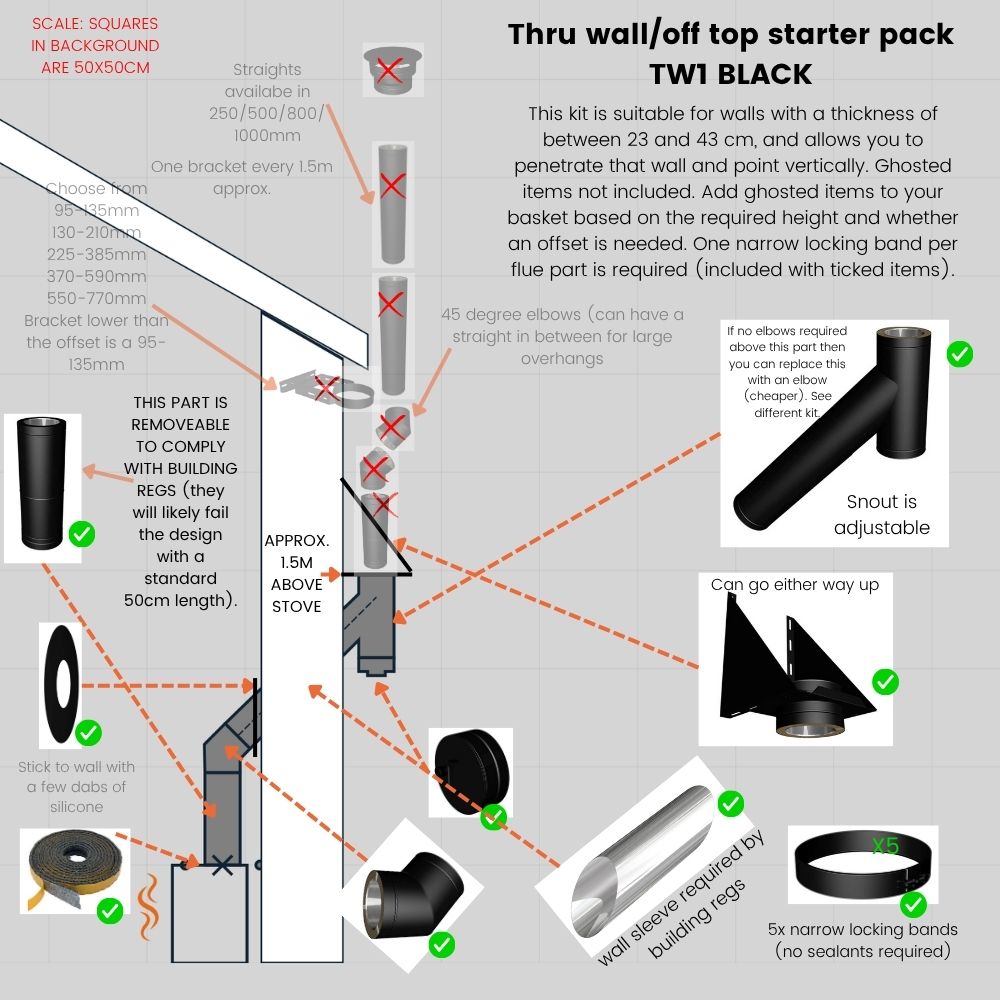

Chimney starter kit in Silvacore Duraflue PRO: through wall, off top, more elbows allowed
Clip-together twin wall starter kit
Including VAT
-
In stock
Leadtime: 1 days
Whatsapp Julian on 0776 980 8007 with any questions or if you need a kit adapting.
FREE named day delivery on
£800+ spend (otherwise £5-£20)
Price
Match
Paypal (pay
over 3 mths)
BUILDING REGULATION COMPLIANT—includes sweep access, ability to remove stove without dismantling chimney, wall-lined with sleeve and no 'connection between parts' in wall. All building regulation requirements often ignored by other sellers.

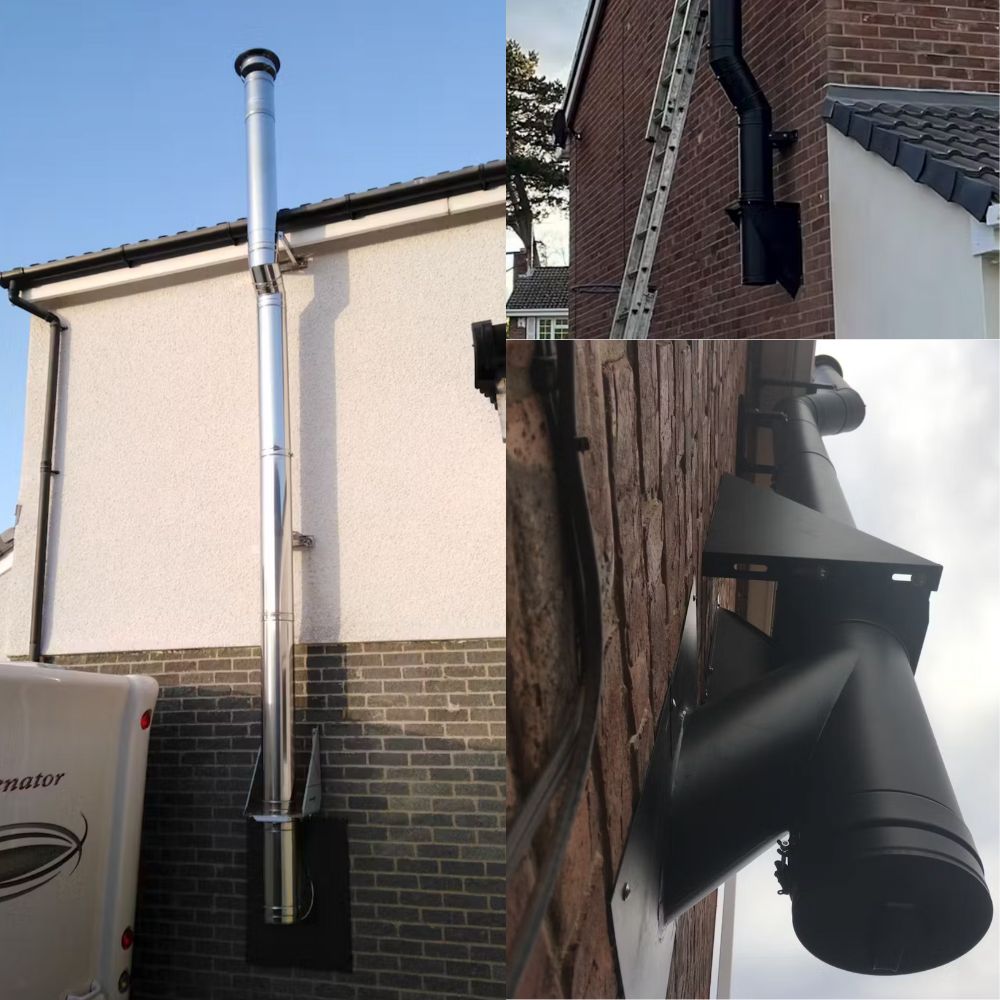

Creating a clip together chimney for a wood burning stove is not difficult but there are quite a few possible "design scenarios" for different building types. But going out through a wall is almost always the same for everybody. The idea of our "easy peasy" kits is to start you off with the key parts. You just add straights to gain height, a bracket or two and a cowl (from the "you may also need" section on this page).
We strongly recommend you watch the six minute video on this page that explains Chimney design rules and regulations.

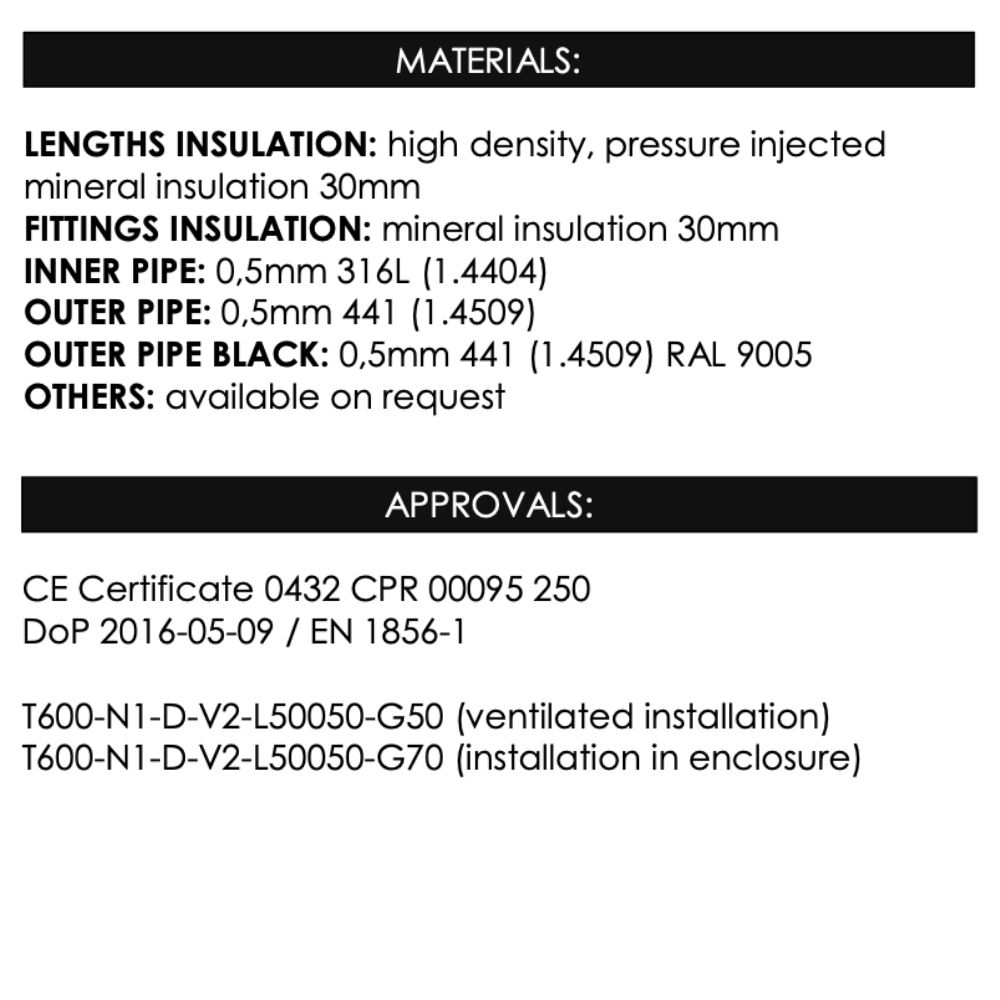

Black is the silver powder coated on top of surface. Twin wall is stainless steel professional Silvacore PRO manufactured by Duraflue. We have chosen this as it does not rust, fade or yellow. Julian, author of the Stovefitter's Manual, has a Silvacore PRO twin wall chimney on his own home (since 2014).
More information on chimney design on our quick links page.
More information on self-installing in a habitable property

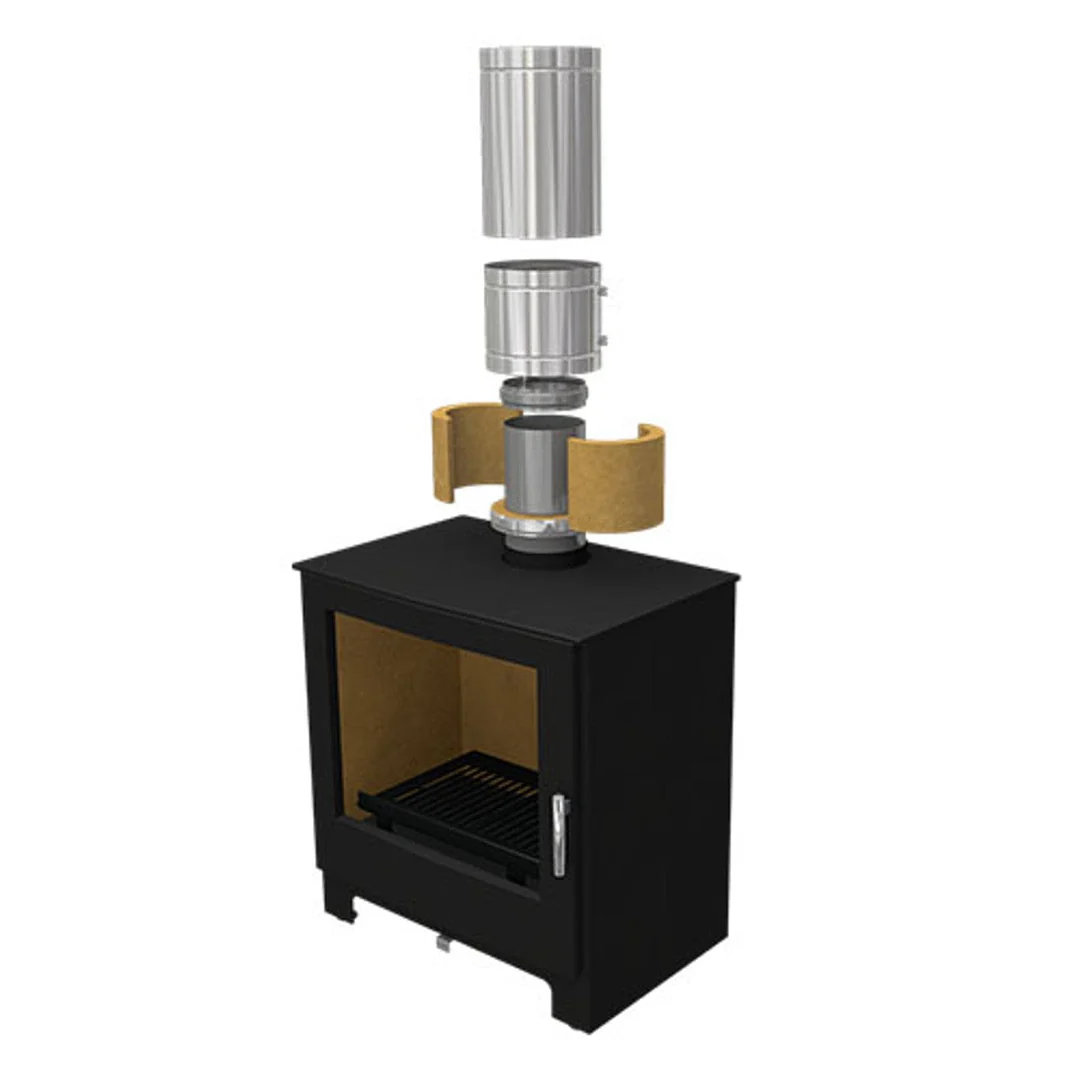

Note: Best performance is realised by attaching a flue to the top, rather than the rear of the stove. This is because smoke likes to rise.
Want us to complete a design for you?
Visit the design page. Find the add property dimensions link. Follow process. Designs usually available within five working days.
Chimney Design (NOW FREE)
£0.00
You may also need
Silvacore Pro by Duraflue Straight length 5": Silver, Black.
from £32.08
Silvacore Pro by Duraflue Straight length 6". Silver, Black.
from £33.26
Silvacore Pro by Duraflue adjustable length: 5", 6", Silver, Black.
from £127.42

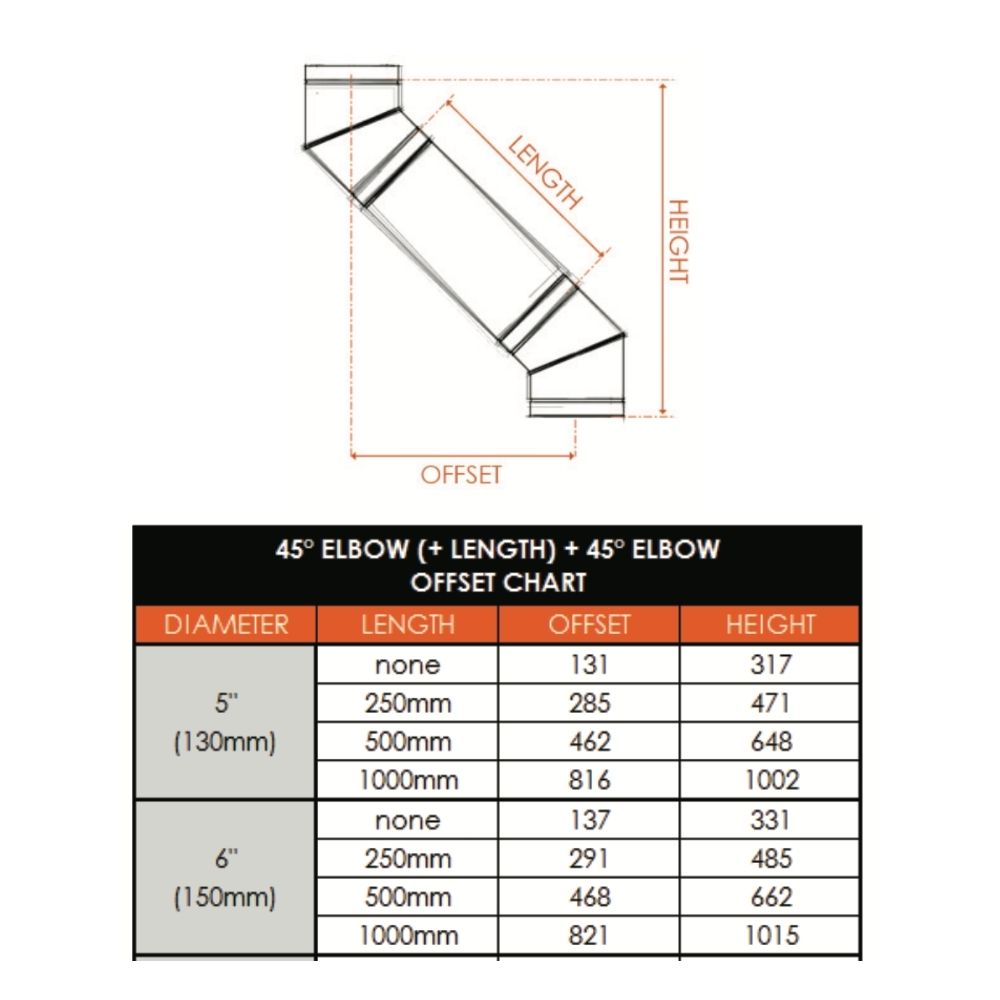

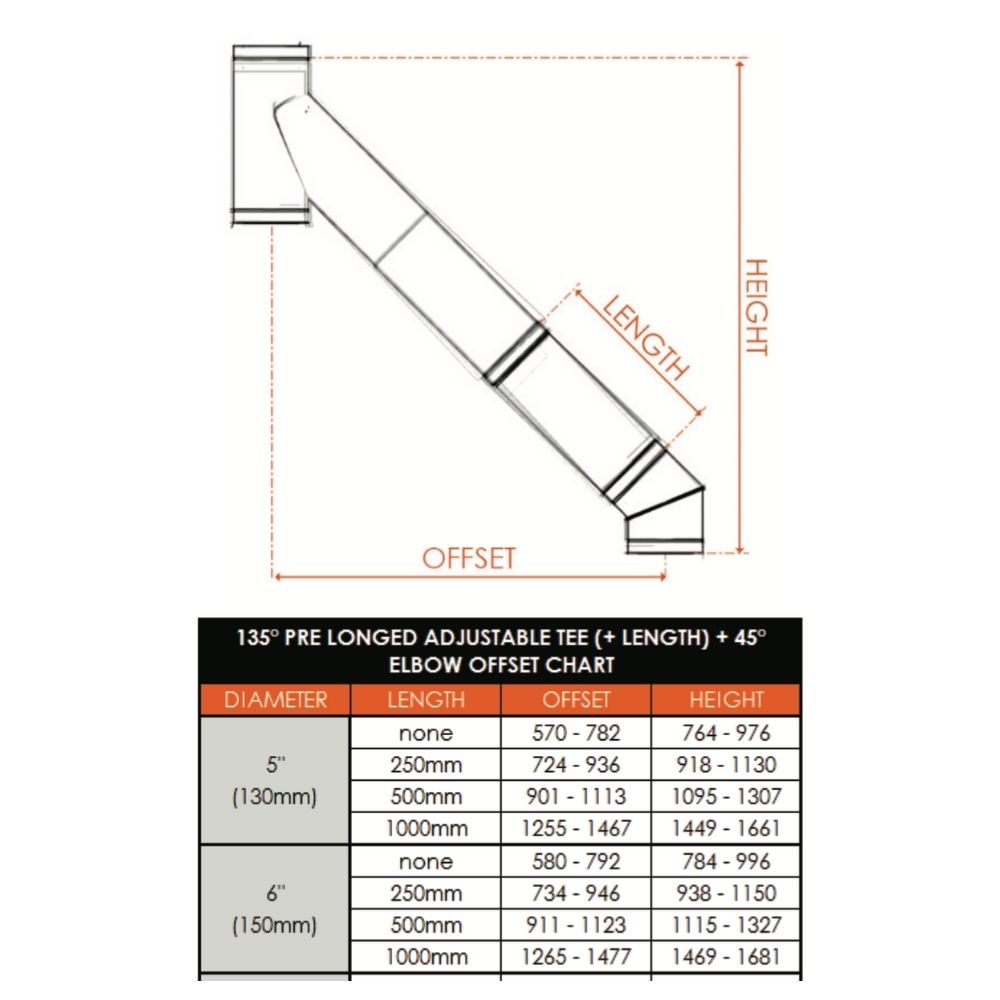

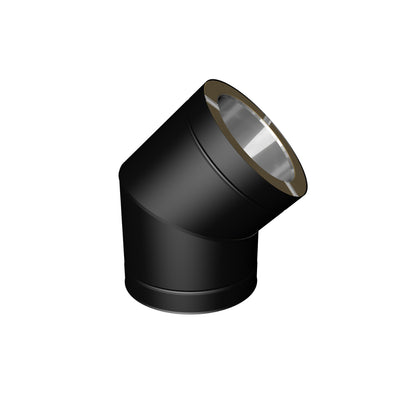

Silvacore Pro by Duraflue 45 degree elbow: 5", 6", Silver, Black.
from £86.03

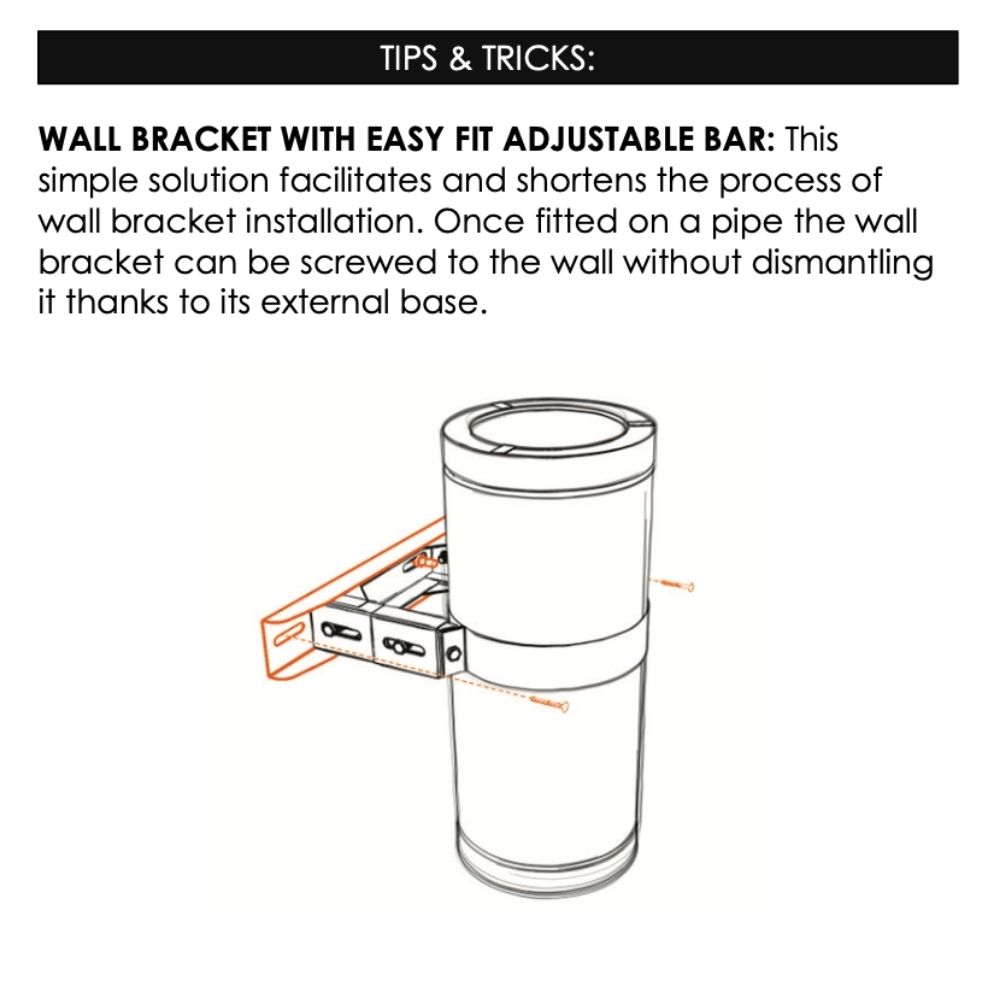

Silvacore Pro by Duraflue Adjustable wall bracket: 5", Silver, Black.
from £57.39
Silvacore Pro by Duraflue Adjustable wall bracket: 6", Silver, Black.
from £69.70

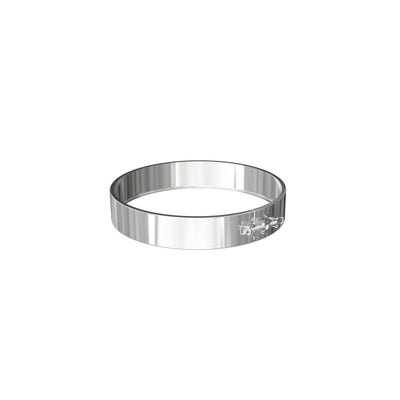

Silvacore Pro by Duraflue Narrow locking band clamp (one required for each joint): 5", 6", Silver, Black.
from £13.80

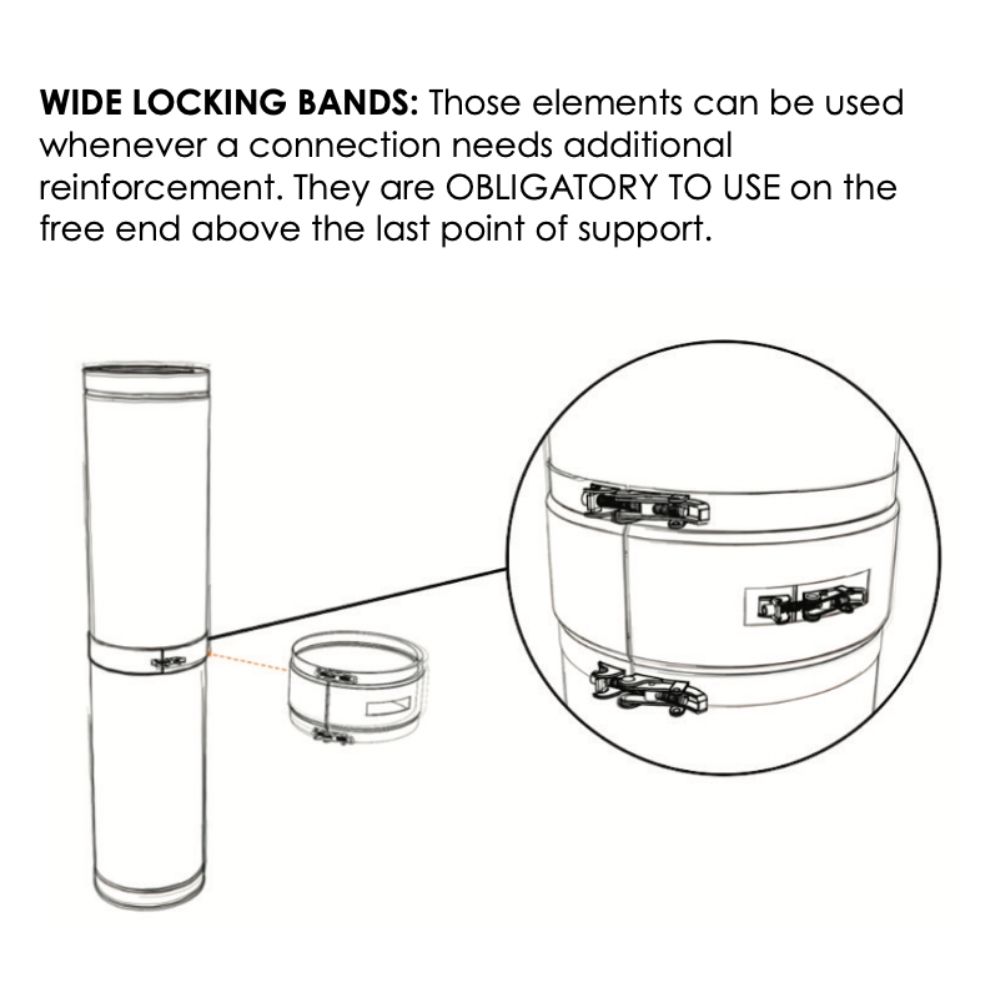

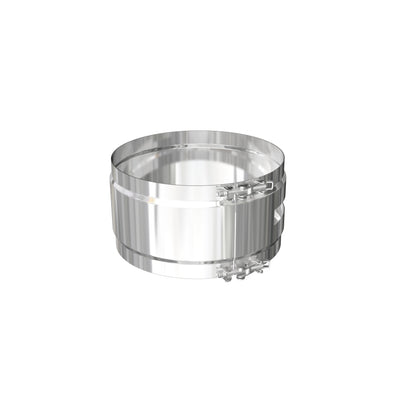

Silvacore Pro by Duraflue Wide Locking Band (goes OVER standard locking band as extra security) and can provide extra strength: 5", 6", Silver, Black.
from £25.91

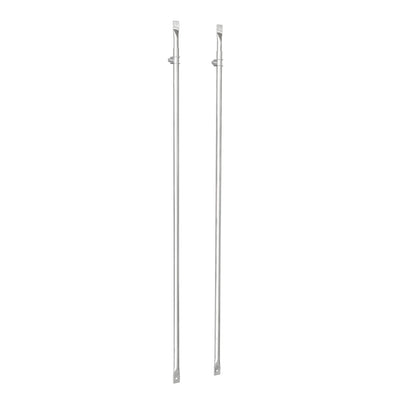

Silvacore Pro by Duraflue Telescopic support legs kit 1.5-2.5m (goes with guy wire bracket): 5", 6", Silver, Black.
from £146.35

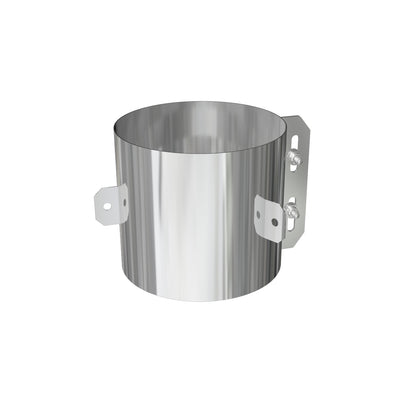

Silvacore Pro by DuraflueGuy wire bracket (requires also Telescopic Support Kit): 5", 6", Silver, Black.
from £86.03
