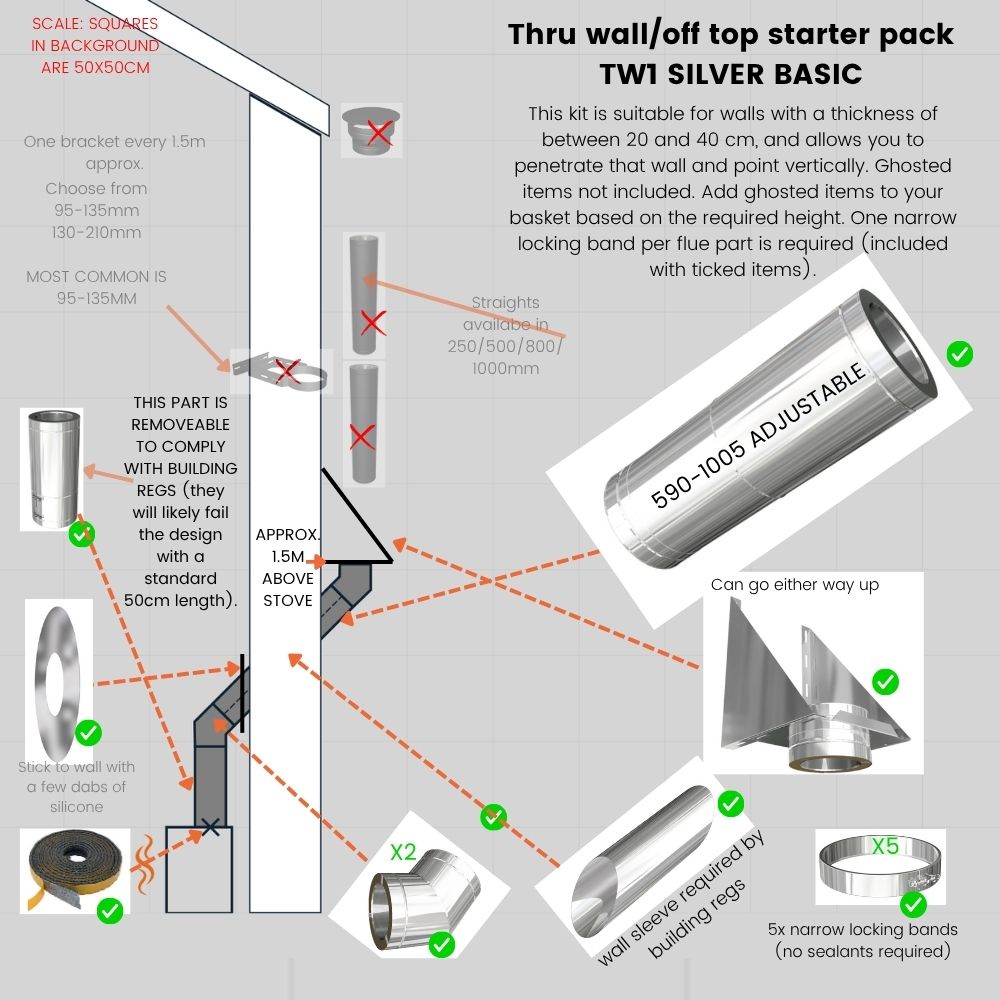

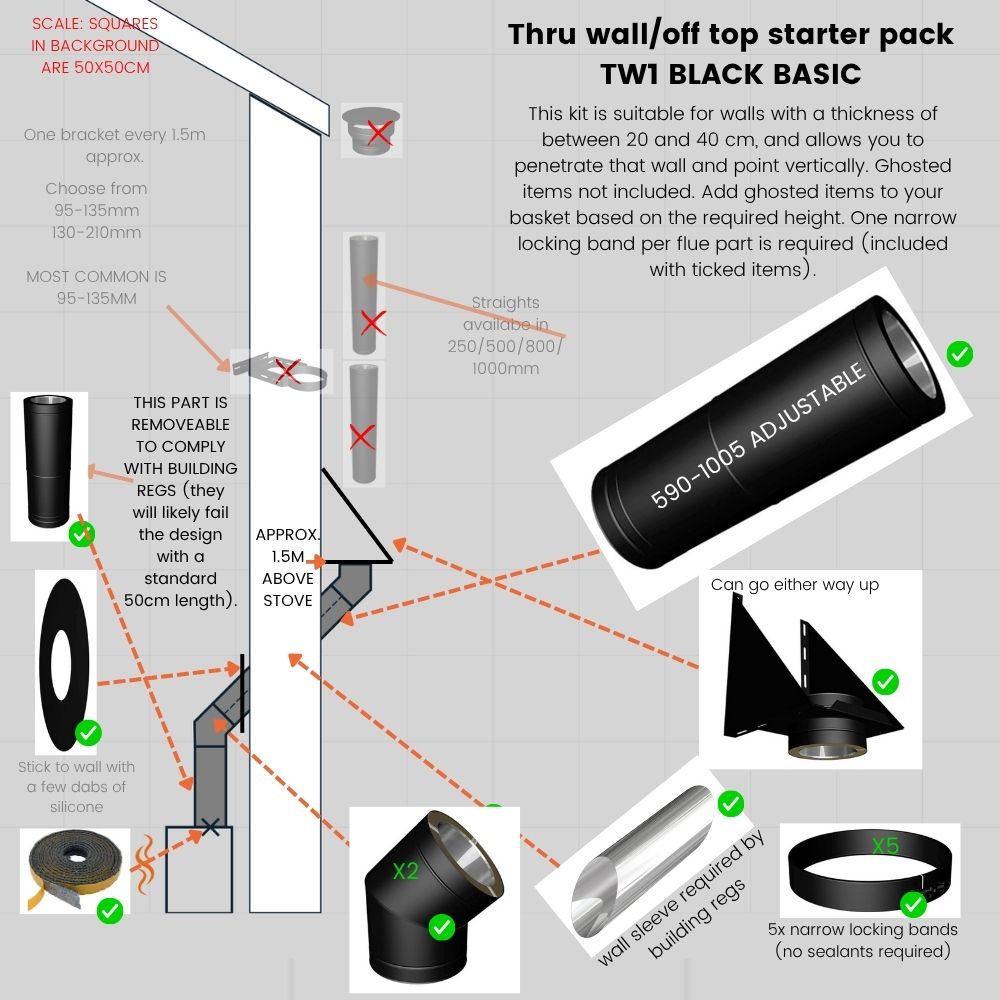

Chimney starter kit in Silvacore Duraflue PRO: through wall, off top

Clip-together twin wall starter kit

BLACK FRIDAY SALE NOW ON
10% OFF MATERIALS - AUTOMATICALLY APPLIED
From
Regular price £922.95
/

Including VAT


  • In stock

    Leadtime: 1 days

Diameter
Colour

Leadtime: 1 days

Total £922.95

Select
View product

NAMED-DAY DELIVERY (FREE IF £780+ SPEND)—CALENDAR AT CHECKOUT. IF IN SCOTLAND OR OFFSHORE PLEASE TYPE SCOTLAND INTO SEARCH BAR.

Price

Match

Paypal (pay

over 3 mths)

FREE one-year glass warranty & installer list (local to you—text 0776 9808007 after purchase for list)

One year glass warranty one claim

£68 FREE!

You may also need

DTW Adjustable Length 590 - 1005mm 5 Inch SS

£169.00

DTW 45 degree Elbow 5 Inch MB

£91.00

DTW Adjustable Wall Bracket 95 - 135mm 5 Inch SS

£83.00

DTW Adjustable Wall Bracket 130 - 210mm 5 Inch SS

£89.00

DTW Narrow Locking Band 5 Inch SS

£36.00

DTW Wide Locking Band 5 Inch SS

£47.00

DTW 1500 - 2500mm Telescopic Support Kit SS

£210.42

DTW Guy Wire Bracket 5 Inch SS

£100.00

Total of extras

£0.00

BUILDING REGULATION COMPLIANT—includes sweep access, ability to remove stove without dismantling chimney, wall-lined with sleeve and no 'connection between parts' in wall. All building regulation requirements often ignored by other sellers.

Creating a clip together chimney for a wood burning stove is not difficult but there are quite a few possible "design scenarios" for different building types. But going out through a wall is almost always the same for everybody. The idea of our "easy peasy" kits is to start you off with the key parts. You just add straights to gain height, a bracket or two and a cowl (from the "you may also need" section on this page).

We strongly recommend you watch the six minute video on this page that explains Chimney design rules and regulations.

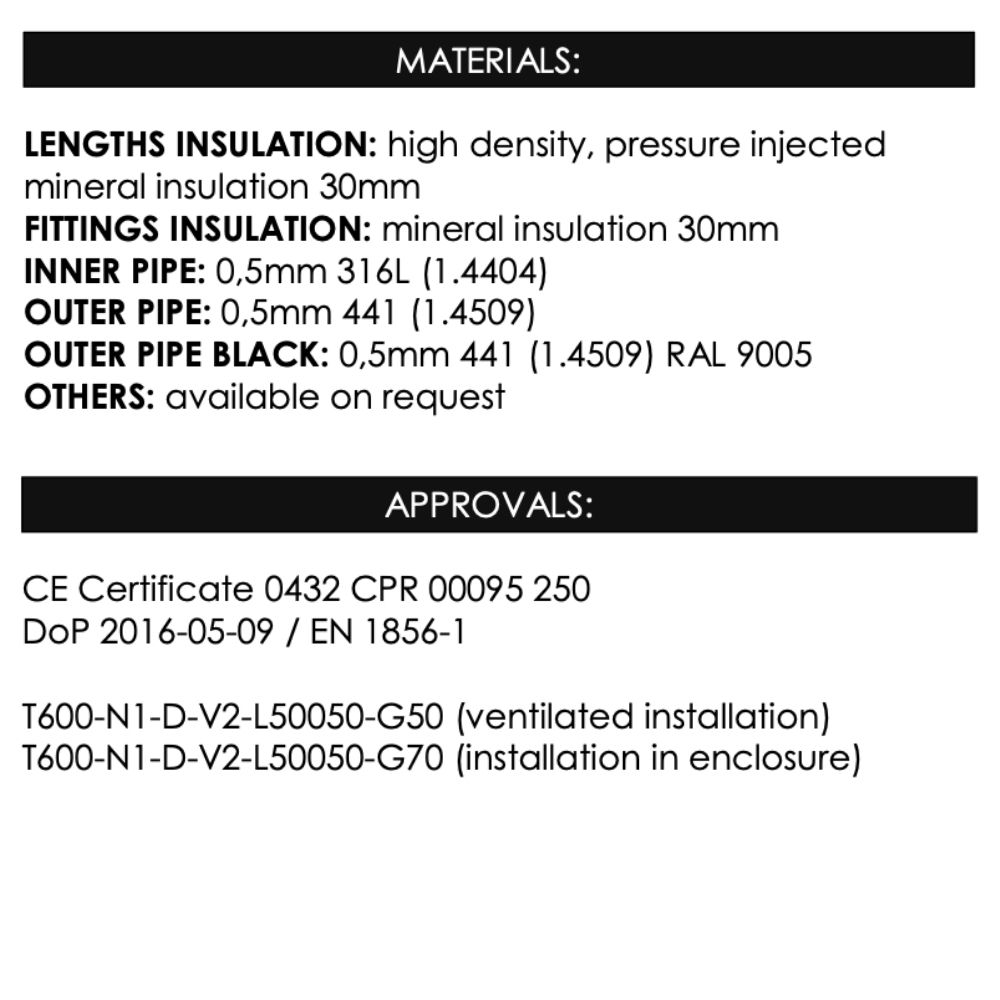

Black is the silver powder coated on top of surface. Twin wall is stainless steel professional Silvacore PRO manufactured by Duraflue. We have chosen this as it does not rust, fade or yellow. Julian, author of the Stovefitter's Manual, has a Silvacore PRO twin wall chimney on his own home (since 2014).

More information on  chimney design on our quick links page.
More information on self-installing in a habitable property

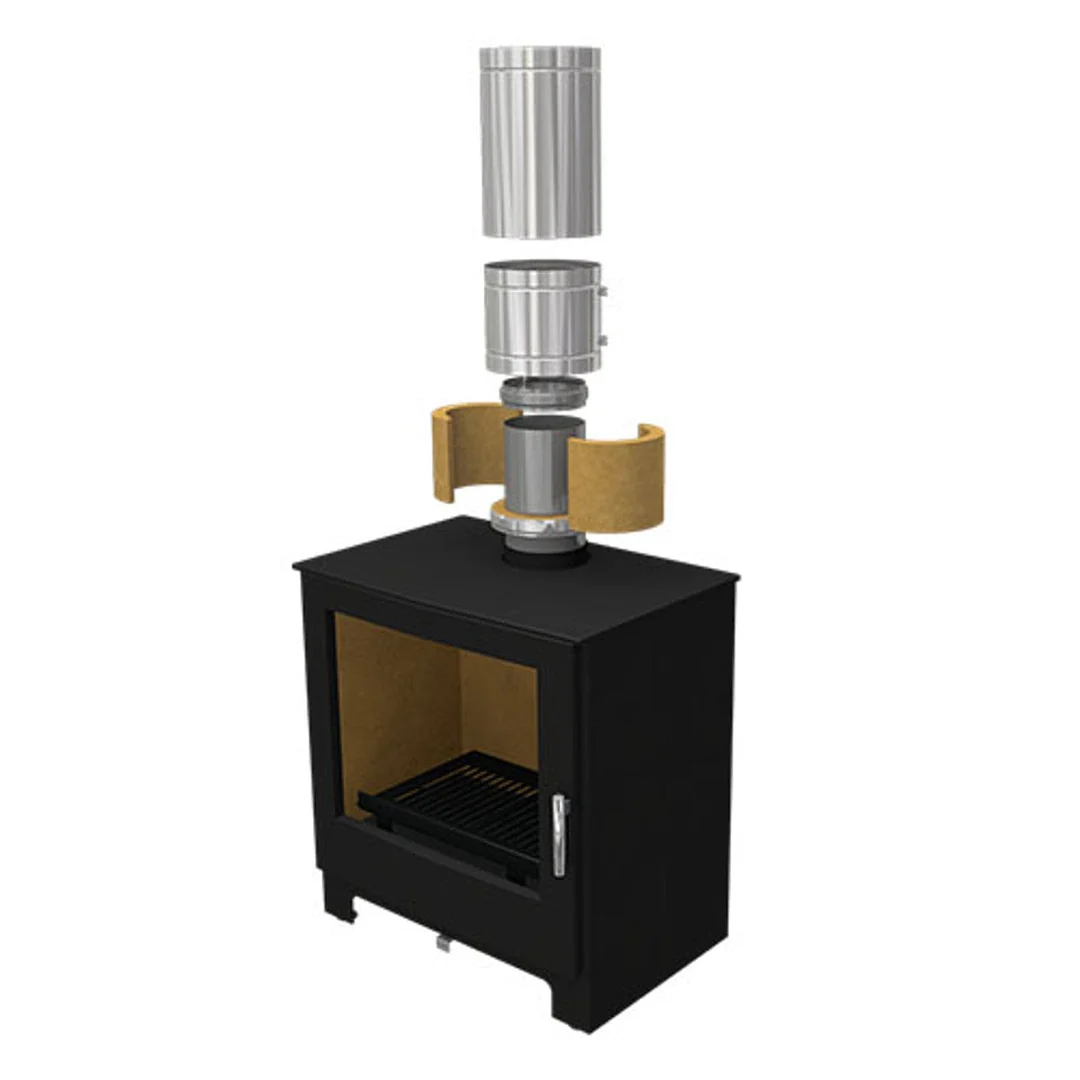

Note: Best performance is realised by attaching a flue to the top, rather than the rear of the stove. This is because smoke likes to rise.



"Easy peasy chimney design"

Julian Patrick, site owner and author of The Stovefitter's Manual.

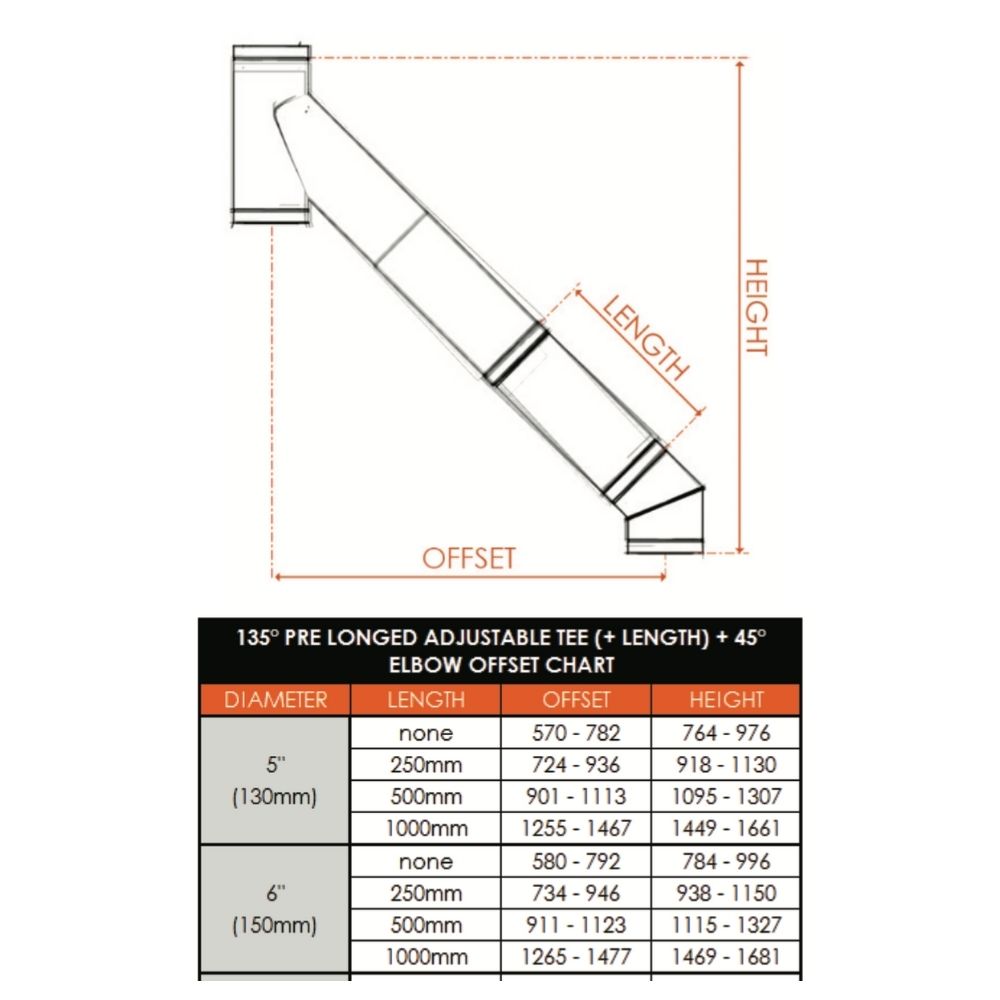

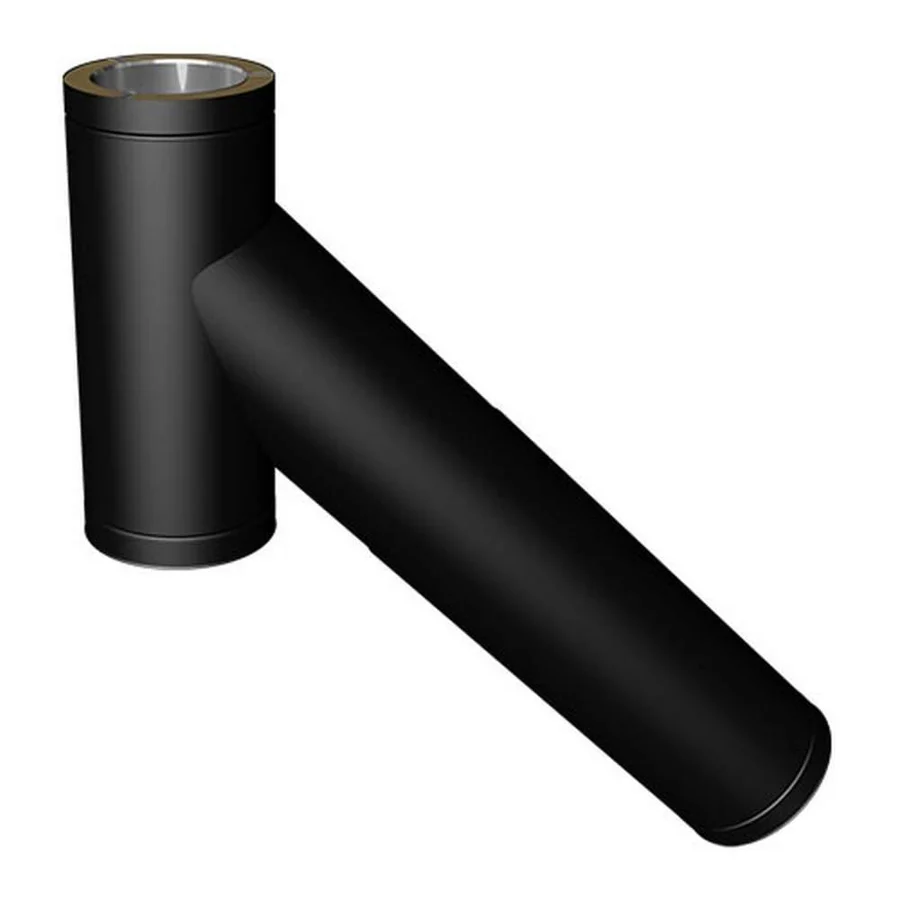

This kit includes a superbly designed part called the 135 degree T with prolonged adjustable snout. The long snout extends or retracts like a trombone so you can adapt it to the wall thickness. It also allows you to sweep most of your chimney outside the property.

You might ask "Can I not just have an elbow on the outside of the building—instead of this more expensive part?". The answer is yes, you can use an elbow instead (see a different kit)—but only if your complete flue only requires two changes of direction. For example, on a gable end with no roof overhang you do not need further bends than the one inside the house and the one outside. But if you wish to add two more bends (max. is 4 in total), then you have to have the 135 degree T with its "building regulation legal" soot/sweep access door.

To keep it simple—if you desire to use four bends then you need this part with its soot door (theb 135 T counts as two of the four bend limit and allows you to add two more). Just two bends in total and you can save some money by replacing it with a straight length through the wall and an elbow.

We recommend you watch the video (below) on chimney design.
