Julian Patrick, site owner and author of The Stovefitter's Manual.
You can find more dimensions further up this page.

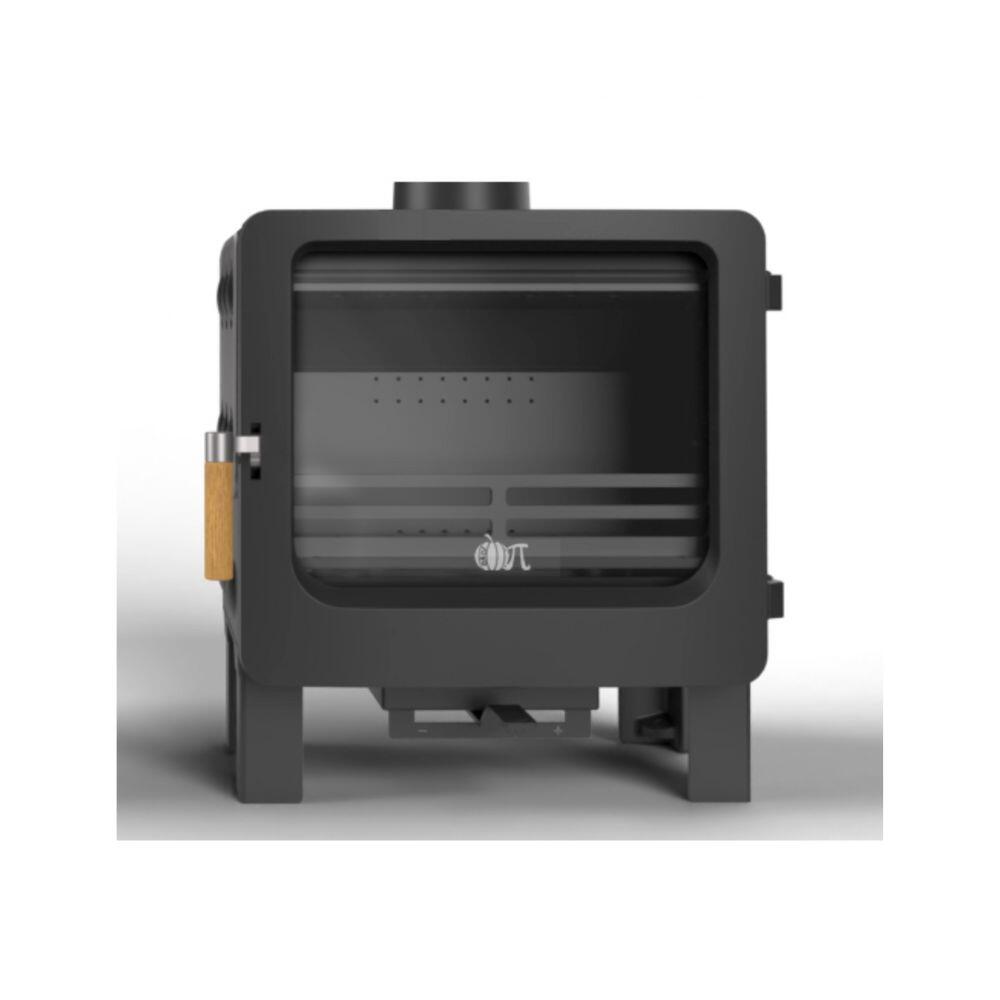

Brand | Ekol Stoves |
---|---|
Fuel | Multifuel |
Output | 5kW |
Width | 428mm (a little more with handle) |
Depth | 341mm |

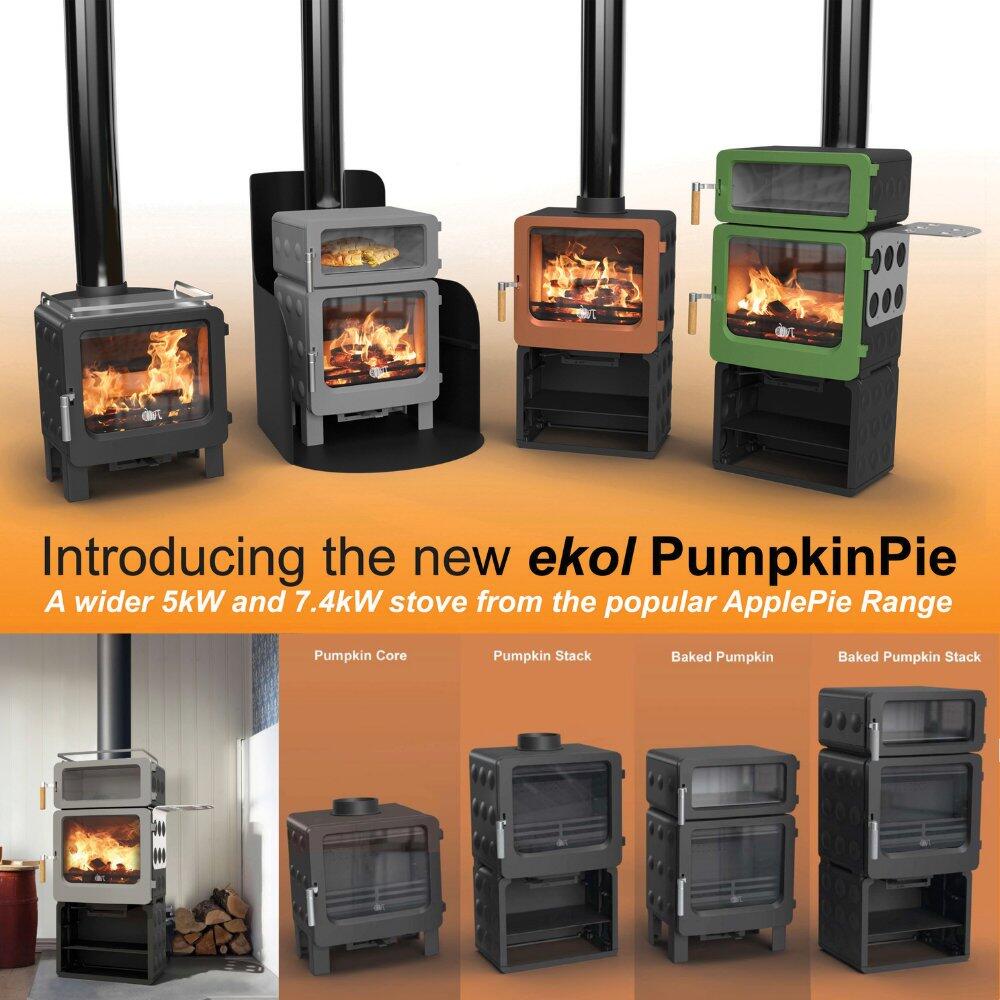

Height | 470mm (Stack 679mm, Baked 665mm, Baked Stack 874mm) |
Flue Diameter | 5" (125mm) |
Efficiency (%) | 82% |
Energy Rating | A |
Flue Placement | Top or Rear (Interchangeable) |
Made Of | Cast Iron |

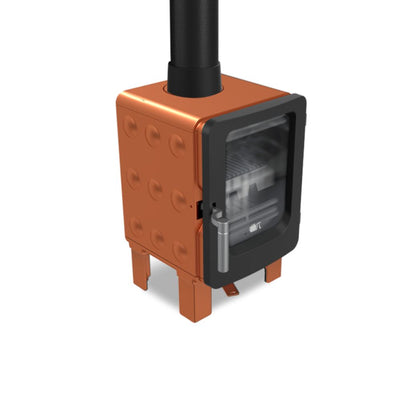

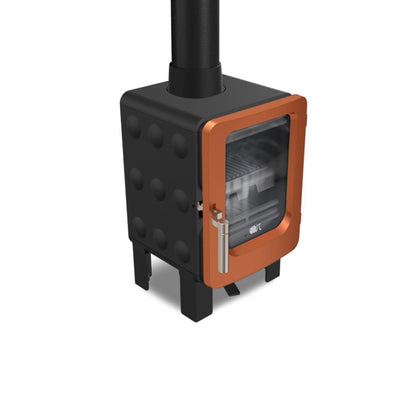

Colour | Black and eight other colours |
Depth From Back to Centre of Top Flue | 132mm |
Height to Centre of Rear Flue | ? |
Weight (Kg) | 50kg upwards |
Distance To Combustibles - Sides | 350mm |

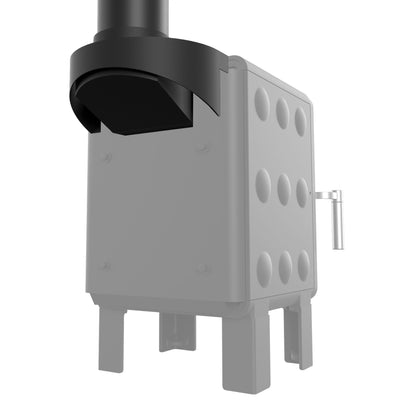

Distance To Combustibles - Rear | 350mm (or 75mm from rear of rear adaptor) |
Can Go On 12mm Hearth | Yes |

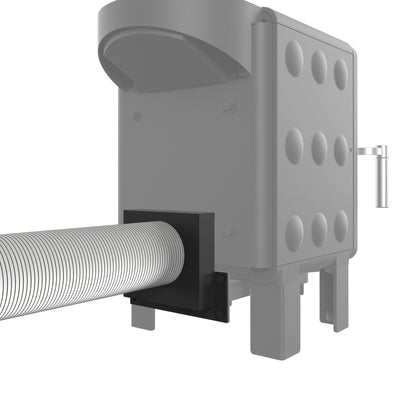

External Air | Yes |
Parts Warranty | None |
Warranty | 10 Year |
They are the same stove except for the firebricks. The 5kW version has thicker firebricks to reduce the firebox size. The 7kW stove will require an air vent whereas the 5kW will likely only need an air vent if the room is fairly airtight.
Ekol Stoves are based in Dorset. The brand Saltfire Stoves is also in the same building and owned by the same lovely people.
Yes it is.
